Description

For Use With:

Description:

CFM: 300 to 1000
Nominal Dimensions: 28″L x 21″W x 23″H
Weight: 60 lbs

MAC-21D Ventilation Unit

The model MAC-21D (P/N FM41) is an adaptation of our model MAC-21 (P/N FM37) 500 CFM HEPA unit. This unit gives up some of the “modular features” in favor of a design assembled from explosion-proof components. The MAC-21D features an explosion proof motor and starter with a spark proof blower design (Class I Zone 2, AEx d nA IIA T3C [US] / Ex d nA IIA T3C [Canada]). Unlike the standard MAC-21, the blower/motor is not removable from the unit cart, and the flex hose inlet is not reconfigurable.

This unit has been evaluated to the applicable CSA standards for use in the United States under product Class 3812-81 (Fans and Blowers) and Canada under product Class 3812-01 (Fans and Blowers).

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE UPON REQUEST.

500CFM, Explosion-proof

SP-700 Series

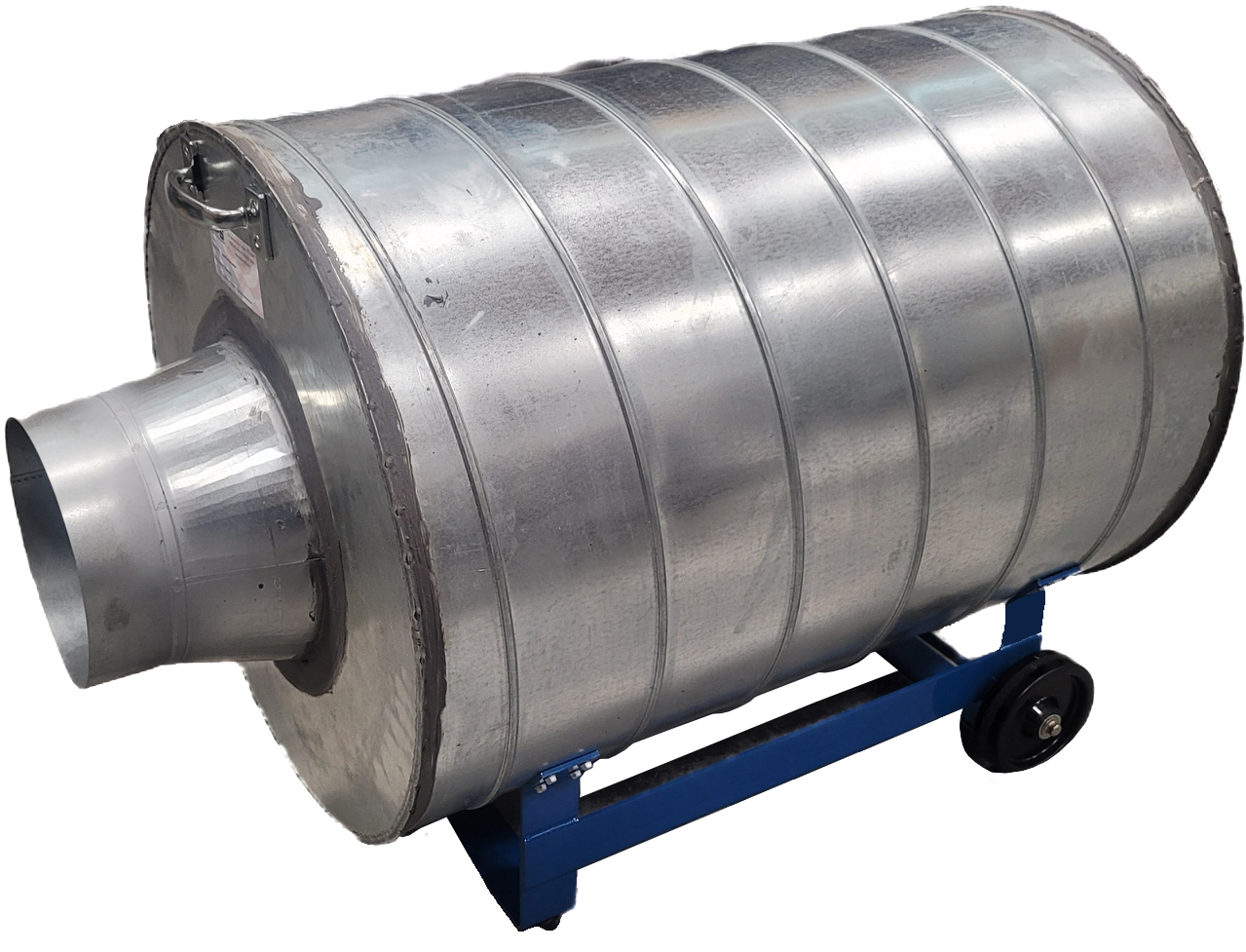

SP-700 Filtration Unit

The SP-700 HEPA filtration unit is a compact, highly portable, industrial quality source of air cleaning. It gets close to the job, eliminating long runs of flex ducting and the associated loss of system performance. The SP-700 operates in either the vertical or horizontal position. The unit is equipped with an 8′ power cord and slide gate for flow control. The unique cylindrical design provides durability and requires less space than comparably rated platform models.

This unit has been evaluated to the applicable CSA standards for use in the United States under product Class 3812-81 (Fans and Blowers) and Canada under product Class 3812-01 (Fans and Blowers).

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE UPON REQUEST.

735CFM, Base Unit

SP-1000 Series

SP-1000LV Filtration Unit

The SP-1000 LV (Low Voltage) HEPA filtration unit is a compact, highly portable, industrial quality source of air cleaning. It goes to the job, eliminating long runs of flex ducting and the associated loss of system performance. The SP-1000 LV operates in either the vertical or horizontal position. A 1.5 HP, totally enclosed fan cooled motor gives this unit a static pressure capability of 1″ water gage at 1088 CFM. The SP-1000 LV is equipped with two 8″ Dia. inlets, each with a flow control damper. The hand truck design provides mobility and easy handling.

This unit has been evaluated to the applicable CSA standards for use in the United States under product Class 3812-81 (Fans and Blowers) and Canada under product Class 3812-01 (Fans and Blowers).

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE UPON REQUEST.

1000CFM, Base Unit, Low Voltage
